电感式接近传感器

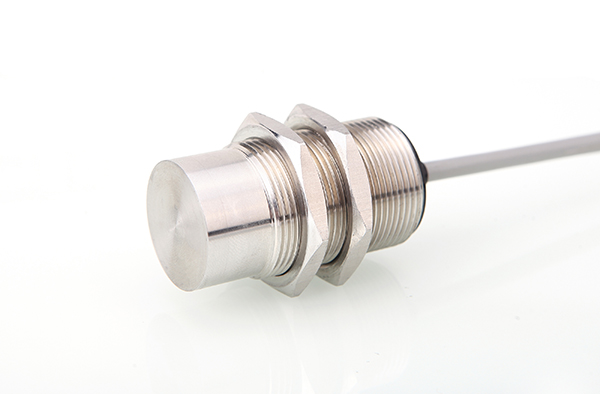

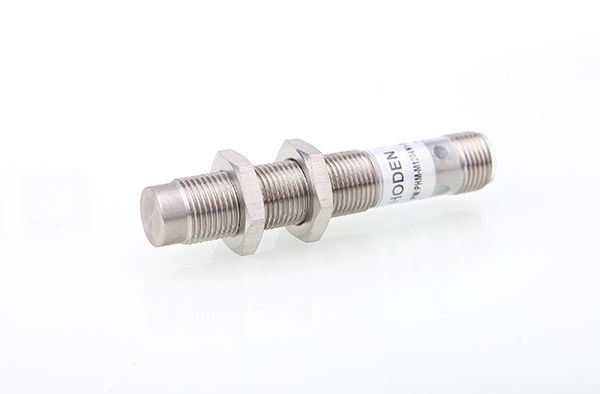

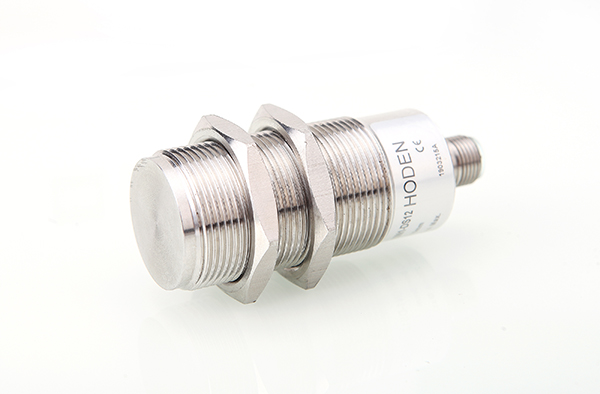

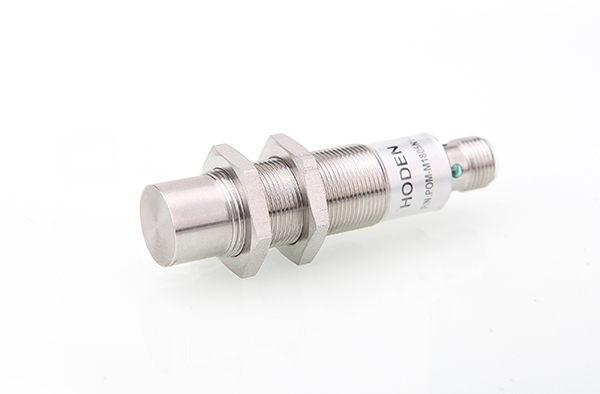

电感式全金属传感器

 不绣钢材质，坚固耐用

 规格从M8至M30，检测距离最长可达15mm

 不同的结构和尺寸，可靠的产品质量，温漂性能稳定

 耐 盐、酸雾等腐蚀性环境

行业应用：汽车行业 / 包装行业 / 智能仓储 / 冶金工业 / 石油化工 / 印刷行业 / 机床行业 / 纺织行业 / 食品行业 / 工厂自动化

基本参数

  • M8
  • M12
  • M18
  • M30
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POM-M0802N1-DP3 M8 2mm 2000Hz Flush 齐平 NPN.NO 45mm Cable,2m,3-wire
POM-M0802N2-DP3 M8 2mm 2000Hz Flush 齐平 NPN.NC 45mm Cable,2m,3-wire
POM-M0802P1-DP3 M8 2mm 2000Hz Flush 齐平 PNP.NO 45mm Cable,2m,3-wire
POM-M0802P2-DP3 M8 2mm 2000Hz Flush 齐平 PNP.NC 45mm Cable,2m,3-wire
POM-M0802N1-DS860 M8 2mm 2000Hz Flush 齐平 NPN.NO 60mm Connector M8,3-pole
POM-M0802N2-DS860 M8 2mm 2000Hz Flush 齐平 NPN.NC 60mm Connector M8,3-pole
POM-M0802P1-DS860 M8 2mm 2000Hz Flush 齐平 PNP.NO 60mm Connector M8,3-pole
POM-M0802P2-DS860 M8 2mm 2000Hz Flush 齐平 PNP.NC 60mm Connector M8,3-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POM-M1204N1-DP3 M12 4mm 2000Hz Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POM-M1204N2-DP3 M12 4mm 2000Hz Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POM-M1204P1-DP3 M12 4mm 2000Hz Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POM-M1204P2-DP3 M12 4mm 2000Hz Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
PHM-M1206N1-DP3 M12 6mm 1000Hz Non-flush 非齐平 NPN.NO 50mm Cable,2m,3-wire
PHM-M1206N2-DP3 M12 6mm 1000Hz Non-flush 非齐平 NPN.NC 50mm Cable,2m,3-wire
PHM-M1206P1-DP3 M12 6mm 1000Hz Non-flush 非齐平 PNP.NO 50mm Cable,2m,3-wire
PHM-M1206P2-DP3 M12 6mm 1000Hz Non-flush 非齐平 PNP.NC 50mm Cable,2m,3-wire
POM-M1204N1-DS1268 M12 4mm 2000Hz Flush 齐平 NPN.NO 68mm Connector M12,4-pole
POM-M1204N2-DS1268 M12 4mm 2000Hz Flush 齐平 NPN.NC 68mm Connector M12,4-pole
POM-M1204P1-DS1268 M12 4mm 2000Hz Flush 齐平 PNP.NO 68mm Connector M12,4-pole
POM-M1204P2-DS1268 M12 4mm 2000Hz Flush 齐平 PNP.NC 68mm Connector M12,4-pole
PHM-M1206N1-DS1268 M12 6mm 1000Hz Non-flush 非齐平 NPN.NO 68mm Connector M12,4-pole
PHM-M1206N2-DS1268 M12 6mm 1000Hz Non-flush 非齐平 NPN.NC 68mm Connector M12,4-pole
PHM-M1206P1-DS1268 M12 6mm 1000Hz Non-flush 非齐平 PNP.NO 68mm Connector M12,4-pole
PHM-M1206P2-DS1268 M12 6mm 1000Hz Non-flush 非齐平 PNP.NC 68mm Connector M12,4-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POM-M1808N1-DP3 M18 8mm 1000Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POM-M1808N2-DP3 M18 8mm 1000Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POM-M1808P1-DP3 M18 8mm 1000Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POM-M1808P2-DP3 M18 8mm 1000Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHM-M1812N1-DP3 M18 12mm 500Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHM-M1812N2-DP3 M18 12mm 500Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHM-M1812P1-DP3 M18 12mm 500Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHM-M1812P2-DP3 M18 12mm 500Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
POM-M1808N1-DS1279 M18 8mm 1000Hz Flush 齐平 NPN.NO 79mm Connector M12,4-pole
POM-M1808N2-DS1279 M18 8mm 1000Hz Flush 齐平 NPN.NC 79mm Connector M12,4-pole
POM-M1808P1-DS1279 M18 8mm 1000Hz Flush 齐平 PNP.NO 79mm Connector M12,4-pole
POM-M1808P2-DS1279 M18 8mm 1000Hz Flush 齐平 PNP.NC 79mm Connector M12,4-pole
PHM-M1810N1-DS1279 M18 10mm 1000Hz Non-flush 非齐平 NPN.NO 79mm Connector M12,4-pole
PHM-M1810N2-DS1279 M18 10mm 1000Hz Non-flush 非齐平 NPN.NC 79mm Connector M12,4-pole
PHM-M1810P1-DS1279 M18 10mm 1000Hz Non-flush 非齐平 PNP.NO 79mm Connector M12,4-pole
PHM-M1810P2-DS1279 M18 10mm 1000Hz Non-flush 非齐平 PNP.NC 79mm Connector M12,4-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POM-M3010N1-DP3 M30 10mm 300Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POM-M3010N2-DP3 M30 10mm 300Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POM-M3010P1-DP3 M30 10mm 300Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POM-M3010P2-DP3 M30 10mm 300Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHM-M3015N1-DP3 M30 15mm 150Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHM-M3015N2-DP3 M30 15mm 150Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHM-M3015P1-DP3 M30 15mm 150Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHM-M3015P2-DP3 M30 15mm 150Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
POM-M3010N1-DS1279 M30 10mm 300Hz Flush 齐平 NPN.NO 79mm Connector M12,4-pole
POM-M3010N2-DS1279 M30 10mm 300Hz Flush 齐平 NPN.NC 79mm Connector M12,4-pole
POM-M3010P1-DS1279 M30 10mm 300Hz Flush 齐平 PNP.NO 79mm Connector M12,4-pole
POM-M3010P2-DS1279 M30 10mm 300Hz Flush 齐平 PNP.NC 79mm Connector M12,4-pole
PHM-M3015N1-DS1279 M30 15mm 150Hz Non-flush 非齐平 NPN.NO 79mm Connector M12,4-pole
PHM-M3015N2-DS1279 M30 15mm 150Hz Non-flush 非齐平 NPN.NC 79mm Connector M12,4-pole
PHM-M3015P1-DS1279 M30 15mm 150Hz Non-flush 非齐平 PNP.NO 79mm Connector M12,4-pole
PHM-M3015P2-DS1279 M30 15mm 150Hz Non-flush 非齐平 PNP.NC 79mm Connector M12,4-pole
