电感式接近传感器

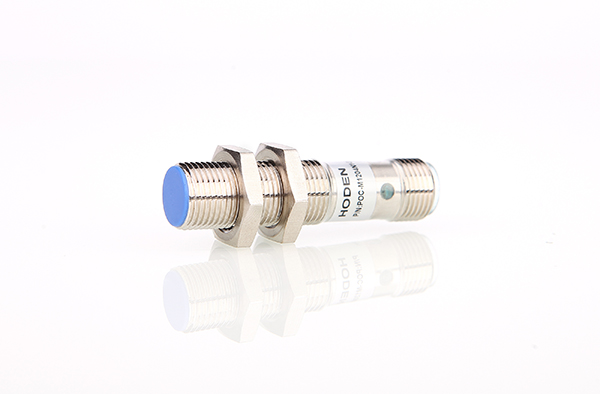

电感式交直流传感器

 适用AC，AD/DC电源，性能稳定

 高频率，抗干扰强

 多种电缆和插头满足个性化需求

行业应用：汽车行业 / 包装行业 / 智能仓储 / 冶金工业 / 石油化工 / 印刷行业 / 机床行业 / 纺织行业 / 食品行业 / 工厂自动化

基本参数

  • M12
  • M18
  • M30
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POC-M1202U1-DAP2 M12 2mm 25Hz AC;40Hz DC Flush 屏蔽 NO 50mm Cable,2m,2-wire
POC-M1202U2-DAP2 M12 2mm 25Hz AC;40Hz DC Flush 屏蔽 NC 50mm Cable,2m,2-wire
PHC-M1208U1-DAP2 M12 4mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 50mm Cable,2m,2-wire
PHC-M1208U2-DAP2 M12 4mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 50mm Cable,2m,2-wire
POC-M1202U1-DAS1250 M12 2mm 25Hz AC;40Hz DC Flush 屏蔽 NO 50mm Connector M12,4-pole
POC-M1202U2-DAS1250 M12 2mm 25Hz AC;40Hz DC Flush 屏蔽 NC 50mm Connector M12,4-pole

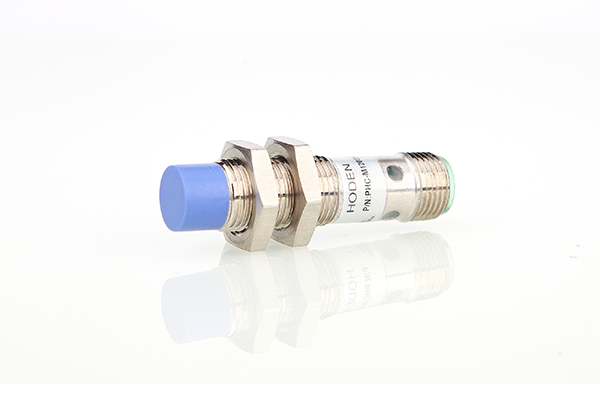

PHC-M1204U1-DAS1250 M12 4mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 50mm Connector M12,4-pole
PHC-M1204U2-DAS1250 M12 4mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 50mm Connector M12,4-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

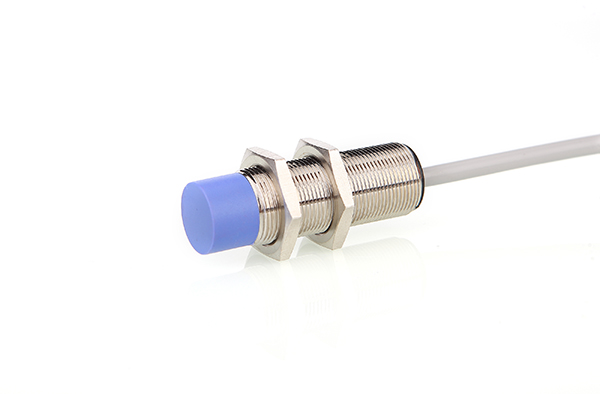

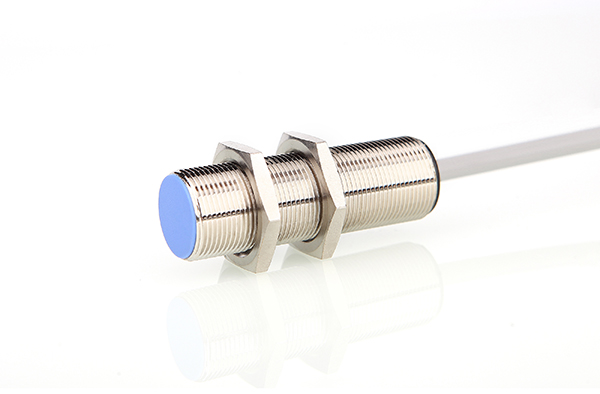

POC-M1805U1-DAP2 M18 5mm 25Hz AC;40Hz DC Flush 屏蔽 NO 55mm Cable,2m,2-wire
POC-M1805U2-DAP2 M18 5mm 25Hz AC;40Hz DC Flush 屏蔽 NC 55mm Cable,2m,2-wire
PHC-M1808U1-DAP2 M18 8mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 55mm Cable,2m,2-wire
PHC-M1808U2-DAP2 M18 8mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 55mm Cable,2m,2-wire

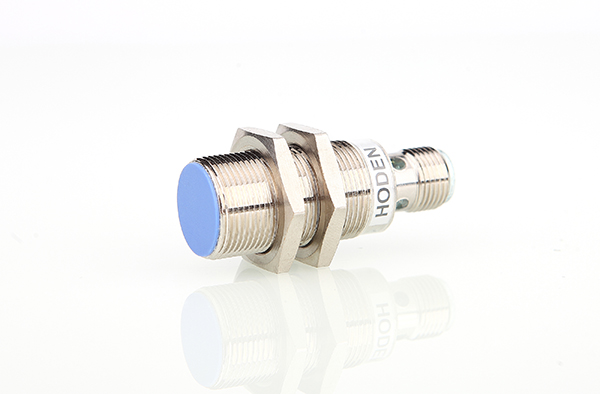

POC-M1805U1-DAS1248 M18 5mm 25Hz AC;40Hz DC Flush 屏蔽 NO 48mm Connector M12,4-pole
POC-M1805U2-DAS1248 M18 5mm 25Hz AC;40Hz DC Flush 屏蔽 NC 48mm Connector M12,4-pole

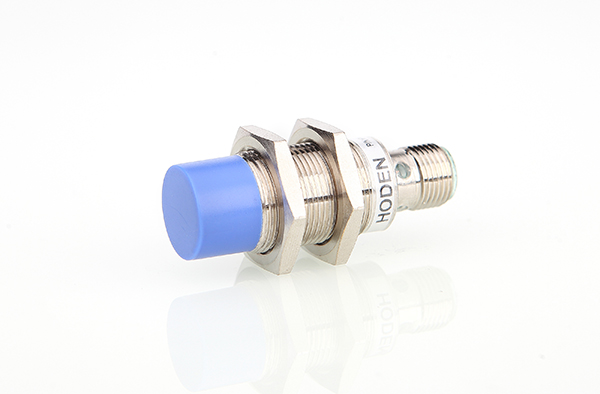

PHC-M1808U1-DAS1253 M18 8mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 53mm Connector M12,4-pole
PHC-M1808U2-DAS1253 M18 8mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 53mm Connector M12,4-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

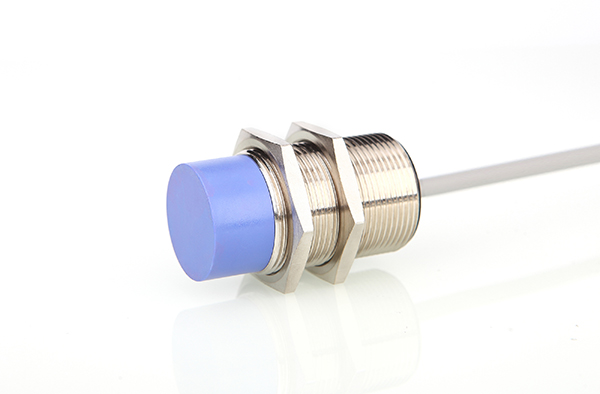

POC-M3010U1-DAP2 M30 10mm 25Hz AC;40Hz DC Flush 屏蔽 NO 55mm Cable,2m,2-wire
POC-M3010U2-DAP2 M30 10mm 25Hz AC;40Hz DC Flush 屏蔽 NC 55mm Cable,2m,2-wire
PHC-M3015U1-DAP2 M30 15mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 55mm Cable,2m,2-wire
PHC-M3015U2-DAP2 M30 15mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 55mm Cable,2m,2-wire

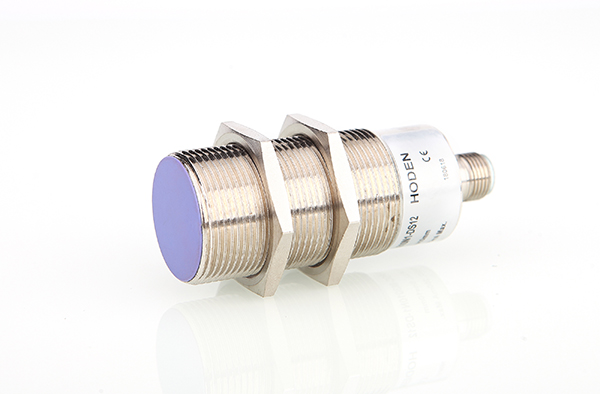

POC-M3010U1-DAS1279 M30 10mm 25Hz AC;40Hz DC Flush 屏蔽 NO 79mm Connector M12,4-pole
POC-M3010U2-DAS1279 M30 10mm 25Hz AC;40Hz DC Flush 屏蔽 NC 79mm Connector M12,4-pole

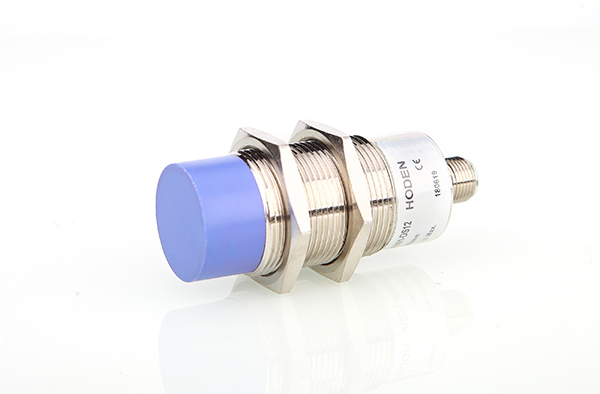

PHC-M3015U1-DAS1279 M30 15mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NO 79mm Connector M12,4-pole
PHC-M3015U2-DAS1279 M30 15mm 25Hz AC;40Hz DC Non-flush 非屏蔽 NC 79mm Connector M12,4-pole
