电感式接近传感器

防磁防焊电感式传感器

 防强磁干扰:创新MVDC多变量动态补偿数字处理技术,具有高水平的EMC特性和超强的抗磁场干扰能力

 防焊渣飞溅:铁氟龙涂层和全金属产品能从容应对金属碎屑的冲击和高温焊渣飞溅,适用于汽车工业等恶劣生产环境

 衰减系数为1:有效解决了恶劣环境造成检测距离衰减的影响

行业应用:汽车行业 / 包装行业 / 智能仓储 / 冶金工业 / 石油化工 / 印刷行业 / 机床行业 / 纺织行业 / 食品行业 / 工厂自动化

基本参数

  • M30
  • M8
  • M12
  • M18
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POF-M3010N1-DF3 M30 10mm 300Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POF-M3010N2-DF3 M30 10mm 300Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POF-M3010P1-DF3 M30 10mm 300Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POF-M3010P2-DF3 M30 10mm 300Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
POF-M3016N1-DF3 M30 16mm 300Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POF-M3016N2-DF3 M30 16mm 300Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POF-M3016P1-DF3 M30 16mm 300Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POF-M3016P2-DF3 M30 16mm 300Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
POF-M3022N1-DF3 M30 22mm 300Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POF-M3022N2-DF3 M30 22mm 300Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POF-M3022P1-DF3 M30 22mm 300Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POF-M3022P2-DF3 M30 22mm 300Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHF-M3015N1-DF3 M30 15mm 150Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHF-M3015N2-DF3 M30 15mm 150Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHF-M3015P1-DF3 M30 15mm 150Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHF-M3015P2-DF3 M30 15mm 150Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
PHF-M3025N1-DF3 M30 25mm 150Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHF-M3025N2-DF3 M30 25mm 150Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHF-M3025P1-DF3 M30 25mm 150Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHF-M3025P2-DF3 M30 25mm 150Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
PHF-M3040N1-DF3 M30 40mm 150Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHF-M3040N2-DF3 M30 40mm 150Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHF-M3040P1-DF3 M30 40mm 150Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHF-M3040P2-DF3 M30 40mm 150Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire

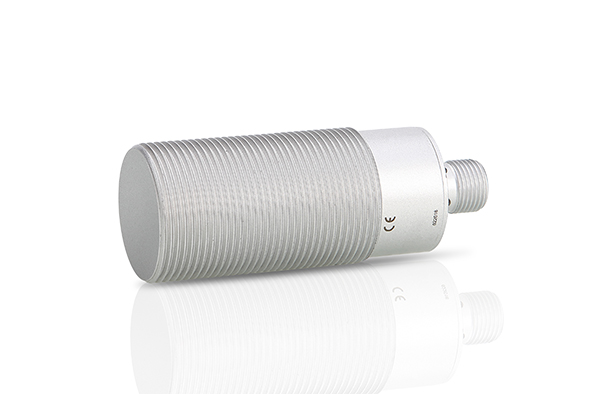

POF-M3010N1-DS1279 M30 10mm 300Hz Flush 齐平 NPN.NO 79mm Connector M12,3-pole
POF-M3010N2-DS1279 M30 10mm 300Hz Flush 齐平 NPN.NC 79mm Connector M12,3-pole
POF-M3010P1-DS1279 M30 10mm 300Hz Flush 齐平 PNP.NO 79mm Connector M12,3-pole
POF-M3010P2-DS1279 M30 10mm 300Hz Flush 齐平 PNP.NC 79mm Connector M12,3-pole
POF-M3016N1-DS1279 M30 16mm 300Hz Flush 齐平 NPN.NO 79mm Connector M12,3-pole
POF-M3016N2-DS1279 M30 16mm 300Hz Flush 齐平 NPN.NC 79mm Connector M12,3-pole
POF-M3016P1-DS1279 M30 16mm 300Hz Flush 齐平 PNP.NO 79mm Connector M12,3-pole
POF-M3016P2-DS1279 M30 16mm 300Hz Flush 齐平 PNP.NC 79mm Connector M12,3-pole
POF-M3022N1-DS1279 M30 22mm 300Hz Flush 齐平 NPN.NO 79mm Connector M12,3-pole
POF-M3022N2-DS1279 M30 22mm 300Hz Flush 齐平 NPN.NC 79mm Connector M12,3-pole
POF-M3022P1-DS1279 M30 22mm 300Hz Flush 齐平 PNP.NO 79mm Connector M12,3-pole
POF-M3022P2-DS1279 M30 22mm 300Hz Flush 齐平 PNP.NC 79mm Connector M12,3-pole
PHF-M3015N1-DS1279 M30 15mm 150Hz Non-flush 非齐平 NPN.NO 79mm Cable,2m,3-wire
PHF-M3015N2-DS1279 M30 15mm 150Hz Non-flush 非齐平 NPN.NC 79mm Cable,2m,3-wire
PHF-M3015P1-DS1279 M30 15mm 150Hz Non-flush 非齐平 PNP.NO 79mm Cable,2m,3-wire
PHF-M3015P2-DS1279 M30 15mm 150Hz Non-flush 非齐平 PNP.NC 79mm Cable,2m,3-wire
PHF-M3025N1-DS1279 M30 25mm 150Hz Non-flush 非齐平 NPN.NO 79mm Cable,2m,3-wire
PHF-M3025N2-DS1279 M30 25mm 150Hz Non-flush 非齐平 NPN.NC 79mm Cable,2m,3-wire
PHF-M3025P1-DS1279 M30 25mm 150Hz Non-flush 非齐平 PNP.NO 79mm Cable,2m,3-wire
PHF-M3025P2-DS1279 M30 25mm 150Hz Non-flush 非齐平 PNP.NC 79mm Cable,2m,3-wire
PHF-M3040N1-DS1279 M30 40mm 150Hz Non-flush 非齐平 NPN.NO 79mm Cable,2m,3-wire
PHF-M3040N2-DS1279 M30 40mm 150Hz Non-flush 非齐平 NPN.NC 79mm Cable,2m,3-wire
PHF-M3040P1-DS1279 M30 40mm 150Hz Non-flush 非齐平 PNP.NO 79mm Cable,2m,3-wire
PHF-M3040P2-DS1279 M30 40mm 150Hz Non-flush 非齐平 PNP.NC 79mm Cable,2m,3-wire
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

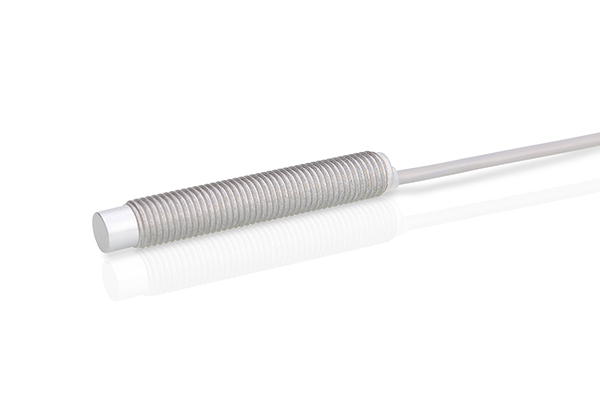

POF-M0802N1-DF3 M8 2mm 2000Hz Flush 齐平 NPN.NO 45mm Cable,2m,3-wire
POF-M0802N2-DF3 M8 2mm 2000Hz Flush 齐平 NPN.NC 45mm Cable,2m,3-wire
POF-M0802P1-DF3 M8 2mm 2000Hz Flush 齐平 PNP.NO 45mm Cable,2m,3-wire
POF-M0802P2-DF3 M8 2mm 2000Hz Flush 齐平 PNP.NC 45mm Cable,2m,3-wire
POF-M0803N1-DF3 M8 3mm 2000Hz Flush 齐平 NPN.NO 45mm Cable,2m,3-wire
POF-M0803N2-DF3 M8 3mm 2000Hz Flush 齐平 NPN.NC 45mm Cable,2m,3-wire
POF-M0803P1-DF3 M8 3mm 2000Hz Flush 齐平 PNP.NO 45mm Cable,2m,3-wire
POF-M0803P2-DF3 M8 3mm 2000Hz Flush 齐平 PNP.NC 45mm Cable,2m,3-wire
PHF-M0804N1-DF3 M8 4mm 1000Hz Non-flush 非齐平 NPN.NO 45mm Cable,2m,3-wire
PHF-M0804N2-DF3 M8 4mm 1000Hz Non-flush 非齐平 NPN.NC 45mm Cable,2m,3-wire
PHF-M0804P1-DF3 M8 4mm 1000Hz Non-flush 非齐平 PNP.NO 45mm Cable,2m,3-wire
PHF-M0804P2-DF3 M8 4mm 1000Hz Non-flush 非齐平 PNP.NC 45mm Cable,2m,3-wire
PHF-M0806N1-DF3 M8 6mm 1000Hz Non-flush 非齐平 NPN.NO 45mm Cable,2m,3-wire
PHF-M0806N2-DF3 M8 6mm 1000Hz Non-flush 非齐平 NPN.NC 45mm Cable,2m,3-wire
PHF-M0806P1-DF3 M8 6mm 1000Hz Non-flush 非齐平 PNP.NO 45mm Cable,2m,3-wire
PHF-M0806P2-DF3 M8 6mm 1000Hz Non-flush 非齐平 PNP.NC 45mm Cable,2m,3-wire

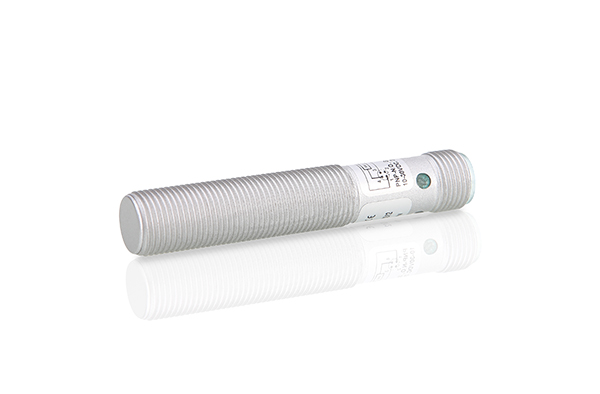

P0F-M0803N1-DS860 M8 3mm 2000Hz Flush 齐平 NPN.NO 60mm Connector M8,3-pole
POF-M0803N2-DS860 M8 3mm 2000Hz Flush 齐平 NPN.NC 60mm Connector M8,3-pole
POF-M0803P1-DS860 M8 3mm 2000Hz Flush 齐平 PNP.NO 60mm Connector M8,3-pole
POF-M0803P2-DS860 M8 3mm 2000Hz Flush 齐平 PNP.NC 60mm Connector M8,3-pole
PHF-M0806N1-DS860 M8 6mm 1000Hz Non-flush 非齐平 NPN.NO 60mm Connector M8,3-pole
PHF-M0806N2-DS860 M8 6mm 1000Hz Non-flush 非齐平 NPN.NC 60mm Connector M8,3-pole
PHF-M0806P1-DS860 M8 6mm 1000Hz Non-flush 非齐平 PNP.NO 60mm Connector M8,3-pole
PHF-M0806P2-DS860 M8 6mm 1000Hz Non-flush 非齐平 PNP.NC 60mm Connector M8,3-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

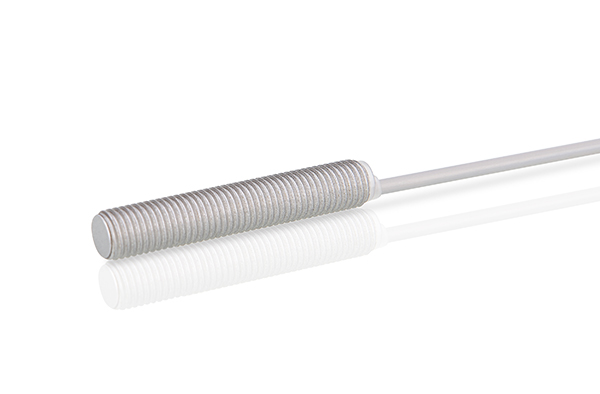

POF-M1204N1-DF3 M12 4mm 2000Hz Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POF-M1204N2-DF3 M12 4mm 2000Hz Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POF-M1204P1-DF3 M12 4mm 2000Hz Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POF-M1204P2-DF3 M12 4mm 2000Hz Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
POF-M1206N1-DF3 M12 6mm 2000Hz Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POF-M1206N2-DF3 M12 6mm 2000Hz Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POF-M1206P1-DF3 M12 6mm 2000Hz Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POF-M1206P2-DF3 M12 6mm 2000Hz Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
PHF-M1208N1-DF3 M12 8mm 1000Hz Non-flush 非齐平 NPN.NO 50mm Cable,2m,3-wire
PHF-M1208N2-DF3 M12 8mm 1000Hz Non-flush 非齐平 NPN.NC 50mm Cable,2m,3-wire
PHF-M1208P1-DF3 M12 8mm 1000Hz Non-flush 非齐平 PNP.NO 50mm Cable,2m,3-wire
PHF-M1208P2-DF3 M12 8mm 1000Hz Non-flush 非齐平 PNP.NC 50mm Cable,2m,3-wire
PHF-M1210N1-DF3 M12 10mm 1000Hz Non-flush 非齐平 NPN.NO 50mm Cable,2m,3-wire
PHF-M1210N2-DF3 M12 10mm 1000Hz Non-flush 非齐平 NPN.NC 50mm Cable,2m,3-wire
PHF-M1210P1-DF3 M12 10mm 1000Hz Non-flush 非齐平 PNP.NO 50mm Cable,2m,3-wire
PHF-M1210P2-DF3 M12 10mm 1000Hz Non-flush 非齐平 PNP.NC 50mm Cable,2m,3-wire

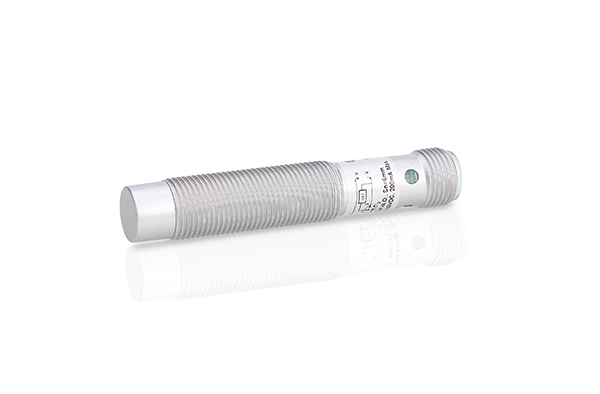

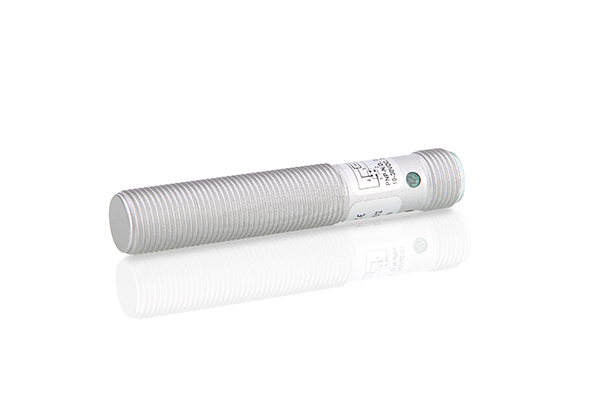

POF-M1204N1-DS1268 M12 4mm 2000Hz Flush 齐平 NPN.NO 68mm Connector M12,3-pole
POF-M1204N2-DS1268 M12 4mm 2000Hz Flush 齐平 NPN.NC 68mm Connector M12,3-pole
POF-M1204P1-DS1268 M12 4mm 2000Hz Flush 齐平 PNP.NO 68mm Connector M12,3-pole
POF-M1204P2-DS1268 M12 4mm 2000Hz Flush 齐平 PNP.NC 68mm Connector M12,3-pole
POF-M1206N1-DS1268 M12 6mm 2000Hz Flush 齐平 NPN.NO 68mm Connector M12,3-pole
POF-M1206N2-DS1268 M12 6mm 2000Hz Flush 齐平 NPN.NC 68mm Connector M12,3-pole
POF-M1206P1-DS1268 M12 6mm 2000Hz Flush 齐平 PNP.NO 68mm Connector M12,3-pole
POF-M1206P2-DS1268 M12 6mm 2000Hz Flush 齐平 PNP.NC 68mm Connector M12,3-pole
PHF-M1208N1-DS1268 M12 8mm 1000Hz Non-flush 非齐平 NPN.NO 68mm Connector M12,3-pole
PHF-M1208N2-DS1268 M12 8mm 1000Hz Non-flush 非齐平 NPN.NC 68mm Connector M12,3-pole
PHF-M1208P1-DS1268 M12 8mm 1000Hz Non-flush 非齐平 PNP.NO 68mm Connector M12,3-pole
PHF-M1208P2-DS1268 M12 8mm 1000Hz Non-flush 非齐平 PNP.NC 68mm Connector M12,3-pole
PHF-M1210N1-DS1268 M12 10mm 1000Hz Non-flush 非齐平 NPN.NO 68mm Connector M12,3-pole
PHF-M1210N2-DS1268 M12 10mm 1000Hz Non-flush 非齐平 NPN.NC 68mm Connector M12,3-pole
PHF-M1210P1-DS1268 M12 10mm 1000Hz Non-flush 非齐平 PNP.NO 68mm Connector M12,3-pole
PHF-M1210P2-DS1268 M12 10mm 1000Hz Non-flush 非齐平 PNP.NC 68mm Connector M12,3-pole
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

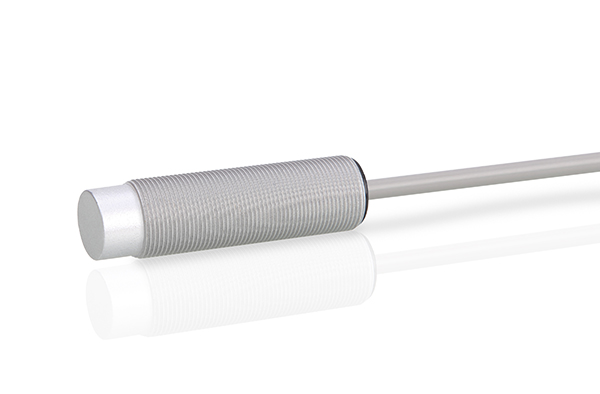

POF-M1808N1-DF3 M18 8mm 1000Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POF-M1808N2-DF3 M18 8mm 1000Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POF-M1808P1-DF3 M18 8mm 1000Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POF-M1808P2-DF3 M18 8mm 1000Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
POF-M1812N1-DF3 M18 12mm 1000Hz Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POF-M1812N2-DF3 M18 12mm 1000Hz Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POF-M1812P1-DF3 M18 12mm 1000Hz Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POF-M1812P2-DF3 M18 12mm 1000Hz Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHF-M1816N1-DF3 M18 16mm 500Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHF-M1816N2-DF3 M18 16mm 500Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHF-M1816P1-DF3 M18 16mm 500Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHM-M1816P2-DP3 M18 16mm 500Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
PHF-M1820N1-DF3 M18 20mm 500Hz Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHF-M1820N2-DF3 M18 20mm 500Hz Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHF-M1820P1-DF3 M18 20mm 500Hz Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHF-M1820P2-DF3 M18 20mm 500Hz Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire

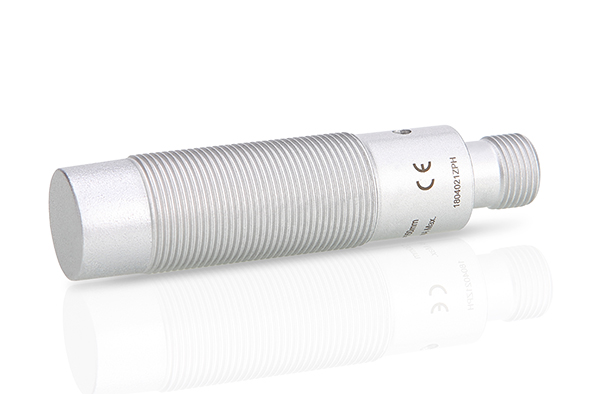

POF-M1808N1-DS1279 M18 8mm 1000Hz Flush 齐平 NPN.NO 79mm Connector M12,3-pole
POF-M1808N2-DS1279 M18 8mm 1000Hz Flush 齐平 NPN.NC 79mm Connector M12,3-pole
POF-M1808P1-DS1279 M18 8mm 1000Hz Flush 齐平 PNP.NO 79mm Connector M12,3-pole
POF-M1808P2-DS1279 M18 8mm 1000Hz Flush 齐平 PNP.NC 79mm Connector M12,3-pole
POF-M1812N1-DS1279 M18 12mm 1000Hz Flush 齐平 NPN.NO 79mm Connector M12,3-pole
POF-M1812N2-DS1279 M18 12mm 1000Hz Flush 齐平 NPN.NC 79mm Connector M12,3-pole
POF-M1812P1-DS1279 M18 12mm 1000Hz Flush 齐平 PNP.NO 79mm Connector M12,3-pole
POF-M1812P2-DS1279 M18 12mm 1000Hz Flush 齐平 PNP.NC 79mm Connector M12,3-pole
PHF-M1816N1-DS1279 M18 16mm 500Hz Non-flush 非齐平 NPN.NO 79mm Connector M12,3-pole
PHF-M1816N2-DS1279 M18 16mm 500Hz Non-flush 非齐平 NPN.NC 79mm Connector M12,3-pole
PHF-M1816P1-DS1279 M18 16mm 500Hz Non-flush 非齐平 PNP.NO 79mm Connector M12,3-pole
PHF-M1816P2-DS1279 M18 16mm 500Hz Non-flush 非齐平 PNP.NC 79mm Connector M12,3-pole
PHF-M1820N1-DS1279 M18 20mm 500Hz Non-flush 非齐平 NPN.NO 79mm Connector M12,3-pole
PHF-M1820N2-DS1279 M18 20mm 500Hz Non-flush 非齐平 NPN.NC 79mm Connector M12,3-pole
PHF-M1820P1-DS1279 M18 20mm 500Hz Non-flush 非齐平 PNP.NO 79mm Connector M12,3-pole
PHF-M1820P2-DS1279 M18 20mm 500Hz Non-flush 非齐平 PNP.NC 79mm Connector M12,3-pole
