Photoelectric sensor

Functional photoelectric sensor

 No blind zone

 Push-button distance adjustment, full metal thread mounting

 Designed with the same optical axis for transparent object detection and high-reflection object detection

 Large spot makes the device insensitive to vibration and tilt of the object

Industry application：Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

Basic Parameters

  • Functional photoelectric sensor
Model Photo Sensing Range Detection Mode type of light source Operating voltage(vcd) Output signa Output Function Wiring Method

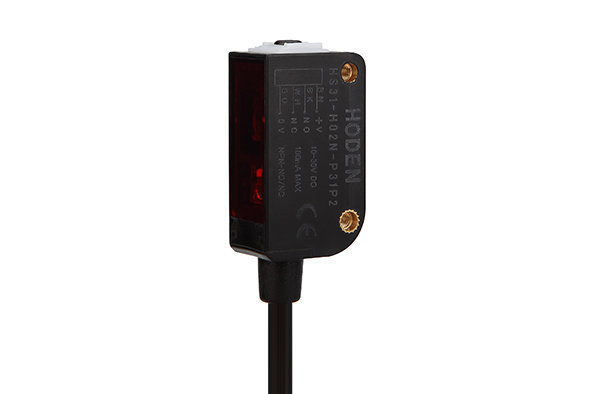

HS31-H02N-P31P2 200mm Diffuse reflection LED odulated visible red light 10…30VDC NPN.NO.NC light/dark operate Cable,2m,4-wire
HS31-H02P-P31P2 200mm Diffuse reflection LED odulated visible red light 10…30VDC PNP.NO.NC light/dark operate Cable,2m,4-wire

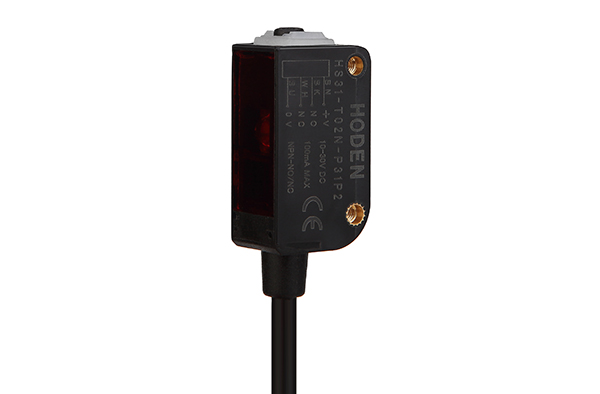

HS31-T02N-P31P2 200mm Diffuse reflection LED odulated visible red light 10…30VDC NPN.NO.NC light/dark operate Cable,2m,4-wire
HS31-T02P-P31P2 200mm Diffuse reflection LED odulated visible red light 10…30VDC PNP.NO.NC light/dark operate Cable,2m,4-wire

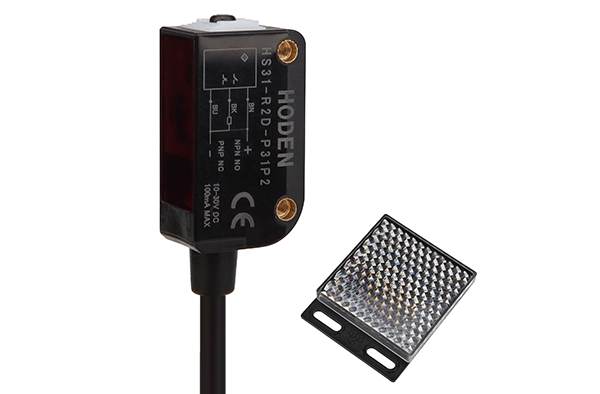

HS31-R2D-P31P2 2m reflection of mirror LED odulated visible red light 10…30VDC NPN.NO/PNP.NC light/dark operate Cable,2m,3-wire
