HS31-H02P-P31P2

Functional photoelectric sensor

 No blind zone

 Push-button distance adjustment, full metal thread mounting

 Designed with the same optical axis for transparent object detection and high-reflection object detection

 Large spot makes the device insensitive to vibration and tilt of the object

Industry application:Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

Main Features

  • Fluctuation of voltage
  • ≤10%
  • Repeat accuracy
  • ±10%
  • Swithing hysteresis
  • 15%
  • wave length
  • 650nm
  • Max load current
  • 100mA
  • Load Curren
  • <35mA
  • Voltage drop max
  • ≤2.0V(I=100mA)
  • Power On Indication
  • LED yellow
  • Light Indicator
  • LED red
  • Swithing frequency
  • 1000Hz
  • Response Time
  • <2ms
  • Short Circuit Protection
  • YES
  • Reverse polarity protection
  • YES
  • Operating Temp
  • -25℃…55℃
  • Protection Class
  • IP65
  • Housing Material
  • ABS
  • Optical face
  • PMMA
  • Mass
  • 40g/10g
  • Connection Types
  • Cable 4 wire, 2 m

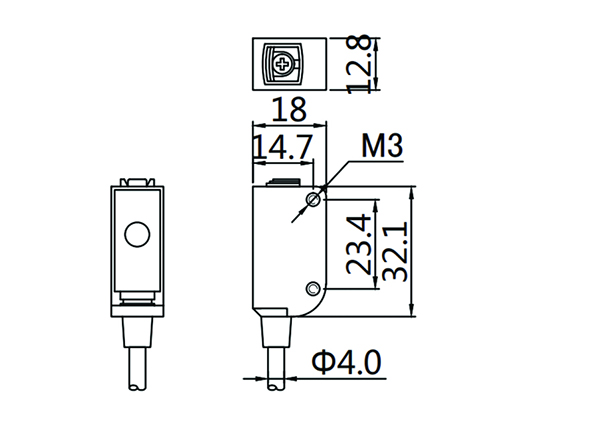

Product Dimension Drawing

Download
