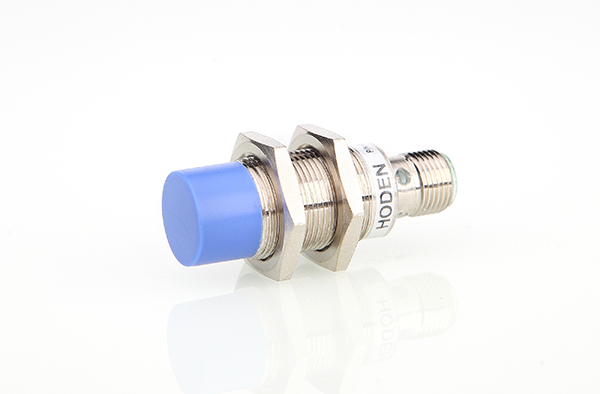

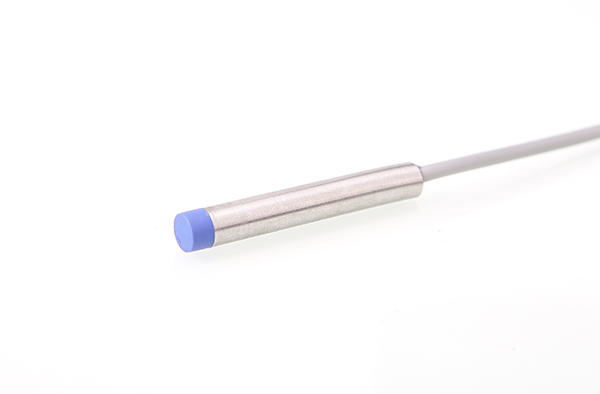

Capacitive proximity sensor

Capacitive 3-wire proximity sensors

Covers the cylindrical shape of M5, Ø 6.5, M8, M12, M18, M30, a variety of shell materials (plastic shell and metal shell)

Compact design for easy installation

Stable temperature drift performance and high sensitivity

Industry application：Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

Basic Parameters

Φ6.5
M8
M12
M18
M30

Model	Photo	Standard	Sensing Range	Swithing Frequency	Mounting Type	Output signa	Product length	Connection Types

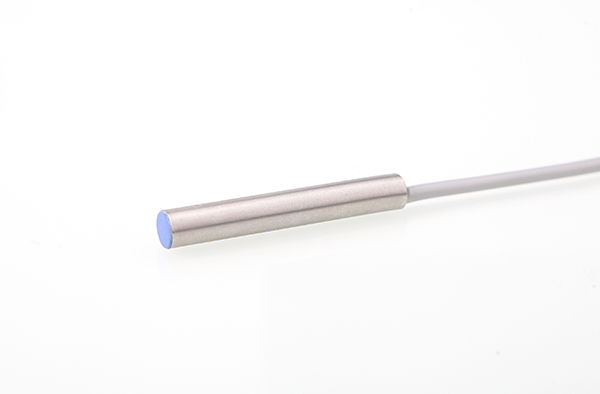

COV-H6.501N1-DP3		Φ6.5	1mm	100Hz	Flush	NPN.NO	45mm	Cable,2m,3-wire
COV-H6.501N2-DP3		Φ6.5	1mm	100Hz	Flush	NPN.NC	45mm	Cable,2m,3-wire
COV-H6.501P1-DP3		Φ6.5	1mm	100Hz	Flush	PNP.NO	45mm	Cable,2m,3-wire
COV-H6.501P2-DP3		Φ6.5	1mm	100Hz	Flush	PNP.NC	45mm	Cable,2m,3-wire
CHV-H6.502N1-DP3		Φ6.5	2mm	100Hz	Non-flush	PNP.NO	45mm	Cable,2m,3-wire
CHV-H6.502N2-DP3		Φ6.5	2mm	100Hz	Non-flush	PNP.NC	45mm	Cable,2m,3-wire
CHV-H6.502P1-DP3		Φ6.5	2mm	100Hz	Non-flush	NPN.NO	45mm	Cable,2m,3-wire
CHV-H6.502P2-DP3		Φ6.5	2mm	100Hz	Non-flush	NPN.NC	45mm	Cable,2m,3-wire

Model	Photo	Standard	Sensing Range	Swithing Frequency	Mounting Type	Output signa	Product length	Connection Types

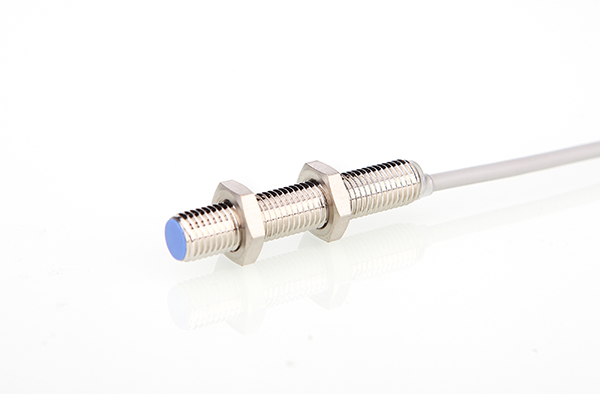

COV-M0801N1-DP3		M8	1mm	100Hz	Flush	NPN.NO	45mm	Cable,2m,3-wire
COV-M0801N2-DP3		M8	1mm	100Hz	Flush	NPN.NC	45mm	Cable,2m,3-wire
COV-M0801P1-DP3		M8	1mm	100Hz	Flush	PNP.NO	45mm	Cable,2m,3-wire
COV-M0801P2-DP3		M8	1mm	100Hz	Flush	PNP.NC	45mm	Cable,2m,3-wire
CHV-M0802N1-DP3		M8	2mm	100Hz	Non-flush	NPN.NO	45mm	Cable,2m,3-wire
CHV-M0802N2-DP3		M8	2mm	100Hz	Non-flush	NPN.NC	45mm	Cable,2m,3-wire
CHV-M0802P1-DP3		M8	2mm	100Hz	Non-flush	PNP.NO	45mm	Cable,2m,3-wire
CHV-M0802P2-DP3		M8	2mm	100Hz	Non-flush	PNP.NC	45mm	Cable,2m,3-wire
COV-M0801N1-DS845		M8	1mm	100Hz	Flush	NPN.NO	45mm	Connector M8,3-pole
COV-M0801N2-DS845		M8	1mm	100Hz	Flush	NPN.NC	45mm	Connector M8,3-pole
COV-M0801P1-DS845		M8	1mm	100Hz	Flush	PNP.NO	45mm	Connector M8,3-pole
COV-M0801P2-DS845		M8	1mm	100Hz	Flush	PNP.NC	45mm	Connector M8,3-pole
CHV-M0802N1-DS845		M8	2mm	100Hz	Non-flush	PNP.NC	45mm	Connector M8,3-pole
CHV-M0802N2-DS845		M8	2mm	100Hz	Non-flush	PNP.NC	45mm	Connector M8,3-pole
CHV-M0802P1-DS845		M8	2mm	100Hz	Non-flush	PNP.NC	45mm	Connector M8,3-pole
CHV-M0802P2-DS845		M8	2mm	100Hz	Non-flush	PNP.NC	45mm	Connector M8,3-pole

Model	Photo	Standard	Sensing Range	Swithing Frequency	Mounting Type	Output signa	Product length	Connection Types

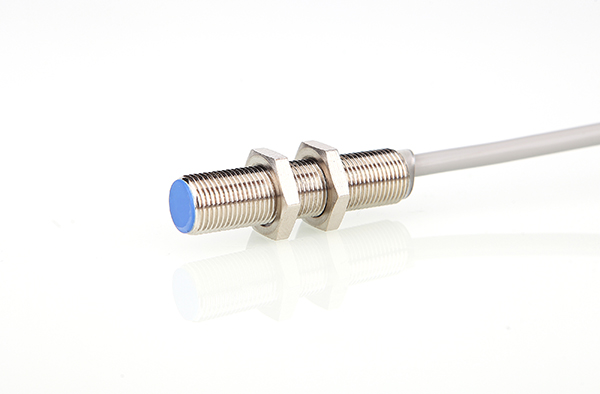

COC-M1203N1-DP3		M12	3mm	100Hz	Flush	NPN.NO	50mm	Cable,2m,3-wire
COC-M1203N2-DP3		M12	3mm	100Hz	Flush	NPN.NC	50mm	Cable,2m,3-wire
COC-M1203P1-DP3		M12	3mm	100Hz	Flush	PNP.NO	50mm	Cable,2m,3-wire
COC-M1203P2-DP3		M12	3mm	100Hz	Flush	PNP.NC	50mm	Cable,2m,3-wire

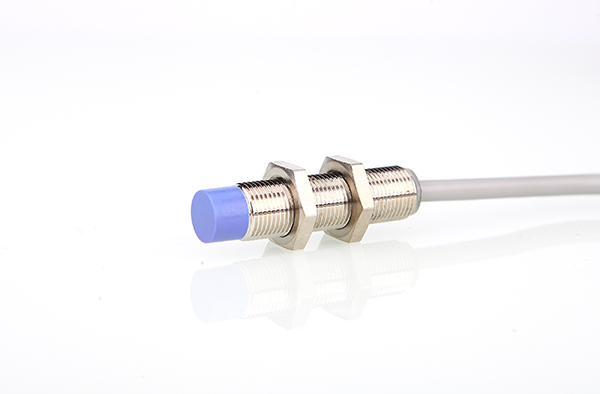

CHC-M1206N1-DP3		M12	6mm	100Hz	Non-flush	NPN.NO	50mm	Cable,2m,3-wire
CHC-M1206N2-DP3		M12	6mm	100Hz	Non-flush	NPN.NC	50mm	Cable,2m,3-wire
CHC-M1206P1-DP3		M12	6mm	100Hz	Non-flush	PNP.NO	50mm	Cable,2m,3-wire
CHC-M1206P2-DP3		M12	6mm	100Hz	Non-flush	PNP.NC	50mm	Cable,2m,3-wire
COC-M1203N1-DS12		M12	3mm	100Hz	Flush	NPN.NO	50mm	Connector M12,4-pole
COC-M1203N2-DS12		M12	3mm	100Hz	Flush	NPN.NC	50mm	Connector M12,4-pole
COC-M1203P1-DS12		M12	3mm	100Hz	Flush	PNP.NO	50mm	Connector M12,4-pole
COC-M1203P2-DS12		M12	3mm	100Hz	Flush	PNP.NC	50mm	Connector M12,4-pole
CHC-M1206N1-DS12		M12	6mm	100Hz	Non-flush	NPN.NO	50mm	Connector M12,4-pole
CHC-M1206N2-DS12		M12	6mm	100Hz	Non-flush	NPN.NC	50mm	Connector M12,4-pole
CHC-M1206P1-DS12		M12	6mm	100Hz	Non-flush	PNP.NC	50mm	Connector M12,4-pole
CHC-M1206P2-DS12		M12	6mm	100Hz	Non-flush	PNP.NC	50mm	Connector M12,4-pole

Model	Photo	Standard	Sensing Range	Swithing Frequency	Mounting Type	Output signa	Product length	Connection Types

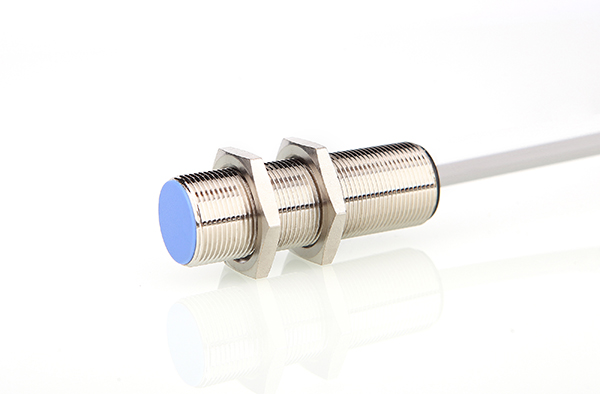

COC-M1808N1-DP3		M18	8mm	100Hz	Flush	NPN.NO	80mm	Cable,2m,3-wire
COC-M1808N2-DP3		M18	8mm	100Hz	Flush	NPN.NC	80mm	Cable,2m,3-wire
COC-M1808P1-DP3		M18	8mm	100Hz	Flush	PNP.NO	80mm	Cable,2m,3-wire
COC-M1808P2-DP3		M18	8mm	100Hz	Flush	PNP.NC	80mm	Cable,2m,3-wire
CHC-M1815N1-DP3		M18	15mm	100Hz	Non-flush	NPN.NO	80mm	Cable,2m,3-wire
CHC-M1815N2-DP3		M18	15mm	100Hz	Non-flush	NPN.NC	80mm	Cable,2m,3-wire
CHC-M1815P1-DP3		M18	15mm	100Hz	Non-flush	PNP.NO	80mm	Cable,2m,3-wire
CHC-M1815P2-DP3		M18	15mm	100Hz	Non-flush	PNP.NC	80mm	Cable,2m,3-wire

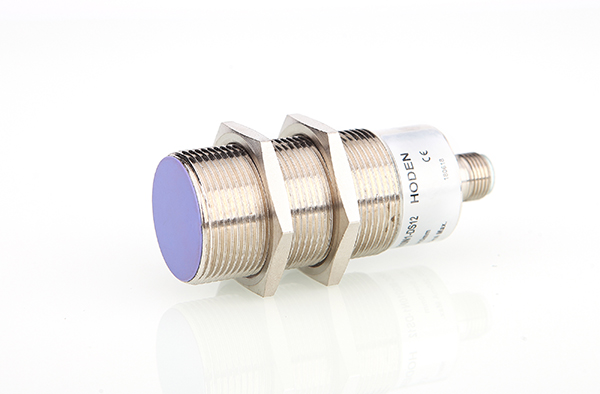

COC-M1808N1-DS12		M18	8mm	100Hz	Flush	NPN.NO	90mm	Connector M12,4-pole
COC-M1808N2-DS12		M18	8mm	100Hz	Flush	NPN.NC	90mm	Connector M12,4-pole
COC-M1808P1-DS12		M18	8mm	100Hz	Flush	PNP.NO	90mm	Connector M12,4-pole
COC-M1808P2-DS12		M18	8mm	100Hz	Flush	PNP.NC	90mm	Connector M12,4-pole
CHC-M1815N1-DS12		M18	15mm	100Hz	Non-flush	NPN.NO	90mm	Connector M12,4-pole
CHC-M1815N2-DS12		M18	15mm	100Hz	Non-flush	NPN.NC	90mm	Connector M12,4-pole
CHC-M1815P1-DS12		M18	15mm	100Hz	Non-flush	PNP.NC	90mm	Connector M12,4-pole
CHC-M1815P2-DS12		M18	15mm	100Hz	Non-flush	PNP.NC	90mm	Connector M12,4-pole

Model	Photo	Standard	Sensing Range	Swithing Frequency	Mounting Type	Output signa	Product length	Connection Types
COC-M3020N1-DP3		M30	20mm	100Hz	Flush	NPN.NO	80mm	Cable,2m,3-wire
COC-M3020N2-DP3		M30	20mm	100Hz	Flush	NPN.NC	80mm	Cable,2m,3-wire
COC-M3020P1-DP3		M30	20mm	100Hz	Flush	PNP.NO	80mm	Cable,2m,3-wire
COC-M3020P2-DP3		M30	20mm	100Hz	Flush	PNP.NC	80mm	Cable,2m,3-wire

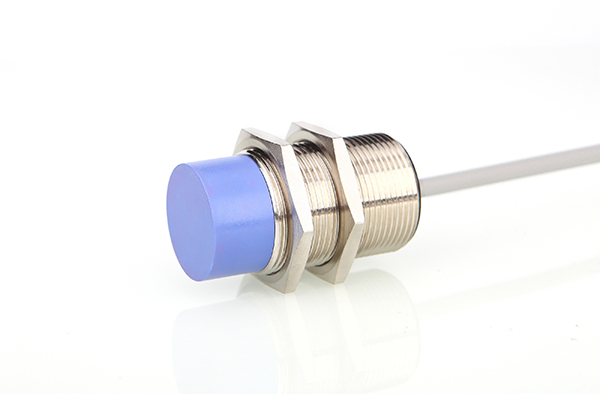

CHC-M30P30N1-DP3		M30	30mm	100Hz	Non-flush	NPN.NO	80mm	Cable,2m,3-wire
CHC-M30P30N2-DP3		M30	30mm	100Hz	Non-flush	NPN.NC	80mm	Cable,2m,3-wire
CHC-M30P30P1-DP3		M30	30mm	100Hz	Non-flush	PNP.NO	80mm	Cable,2m,3-wire
CHC-M30P30P2-DP3		M30	30mm	100Hz	Non-flush	PNP.NC	80mm	Cable,2m,3-wire

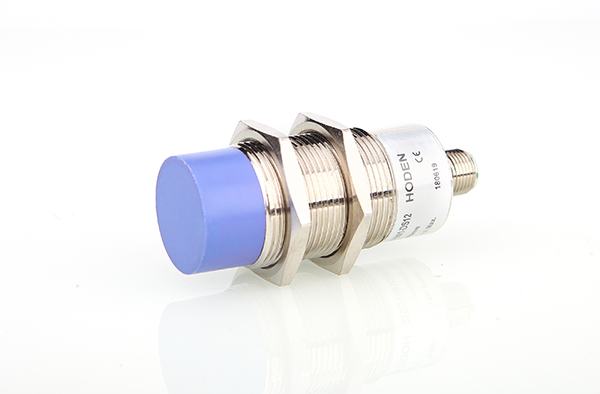

COC-M3020N1-DS12		M30	20mm	100Hz	Flush	NPN.NO	90mm	Connector M12,4-pole
COC-M3020N2-DS12		M30	20mm	100Hz	Flush	NPN.NC	90mm	Connector M12,4-pole
COC-M3020P1-DS12		M30	20mm	100Hz	Flush	PNP.NO	90mm	Connector M12,4-pole
COC-M3020P2-DS12		M30	20mm	100Hz	Flush	PNP.NC	90mm	Connector M12,4-pole
CHC-M3030N1-DS12		M30	30mm	100Hz	Non-flush	NPN.NO	90mm	Connector M12,4-pole
CHC-M3030N2-DS12		M30	30mm	100Hz	Non-flush	NPN.NC	90mm	Connector M12,4-pole
CHC-M3030P1-DS12		M30	30mm	100Hz	Non-flush	PNP.NC	90mm	Connector M12,4-pole
CHC-M3030P2-DS12		M30	30mm	100Hz	Non-flush	PNP.NC	90mm	Connector M12,4-pole
