PHC-M082.5F4-EP3

M8

 Short response time, high repeat accuracy and linear accuracy

 Detection range 0.1 to 15mm

 No contact, no wear, easy to choose analog voltage and current output

 High repeat accuracy and high linearity, short response time

Industry application:Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

Main Features

  • Operating voltage(vdc)
  • 18…30VDC
  • Output Function
  • 4-20mA,<400Ω/0-10VDC,>2000Ω
  • NO Load Curren
  • <35mA
  • Temperature Drift
  • <10%(sr)
  • Swithing Hysteresis
  • <15%(sr)
  • Repeat Accuracy
  • <2.0%(sr)
  • Linearity Error
  • <5%(sr)
  • Operating Temp
  • -25℃…70℃
  • Protection Class
  • IP67
  • Short Circuit Protection
  • YES
  • Reverse Polarity Protection
  • YES
  • Housing Material
  • Stainless Steel
  • Material (Sensing Face)
  • PBT
  • Output Indicator
  • LED Yellow

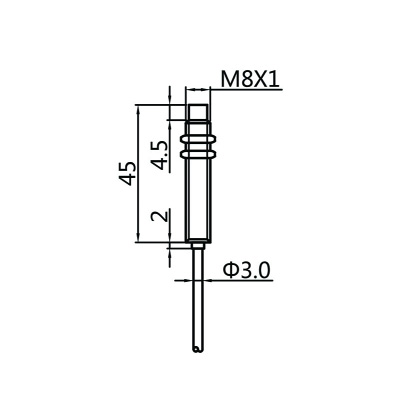

Product Dimension Drawing

Download
